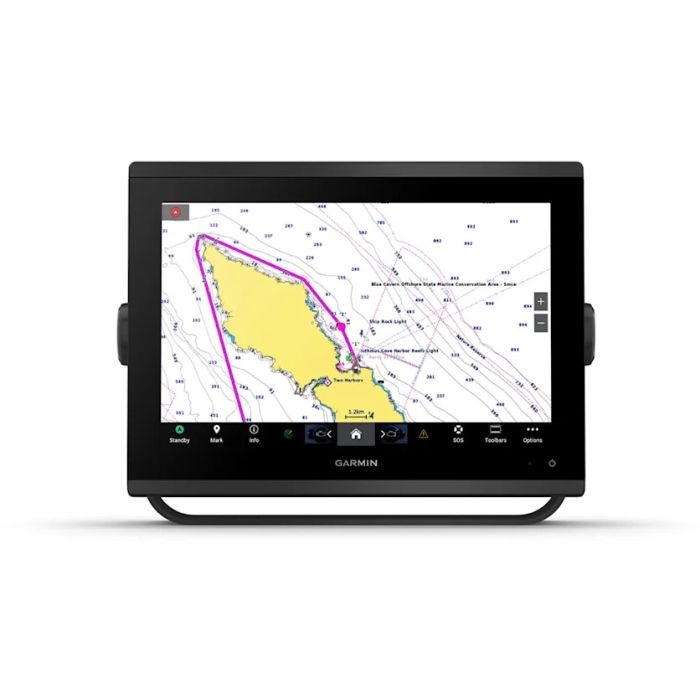

Sonar Chartplotter Garmin GPSMAP 1223xsv Worldwide cu SideVu/ClearVu/CHIRP + Radar cu Cupola GMR 18 HD3

Sonar Chartplotter Garmin GPSMAP 1223xsv Worldwide cu SideVu/ClearVu/CHIRP + Radar cu Cupola GMR 18 HD3

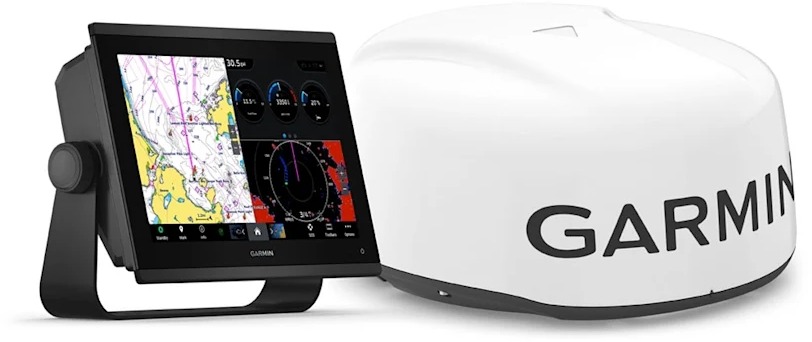

GPSMAP 1223xsv este un chartplotter performant cu ecran tactil de 9inch, sonar integrat CHIRP, ClearVu si SideVu, compatibil cu retelele NMEA2000 si Garmin Marine Network. Pachetul include radarul cu cupola GMR 18 HD3 pentru detectie precisa si navigatie in orice conditii:

Caracteristici fizice si performante:

• Dimensiuni: 30.8x22.8x8.2cm;
• Greutate: 3.0kg;
• Rezistenta la apa: IPX7;

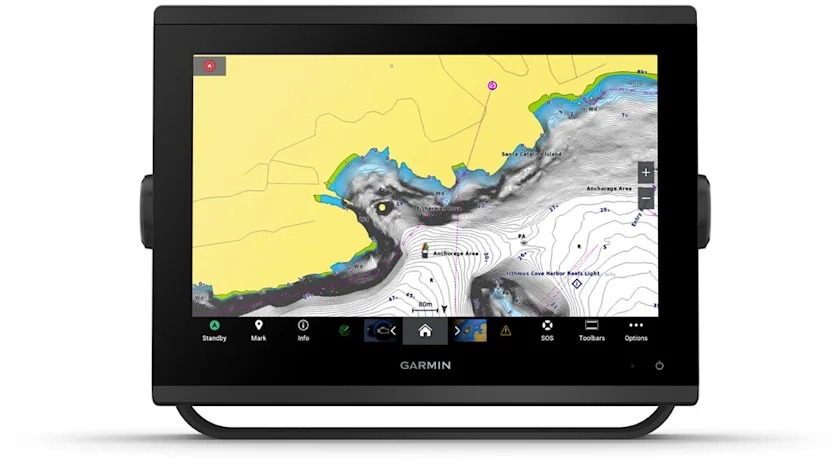

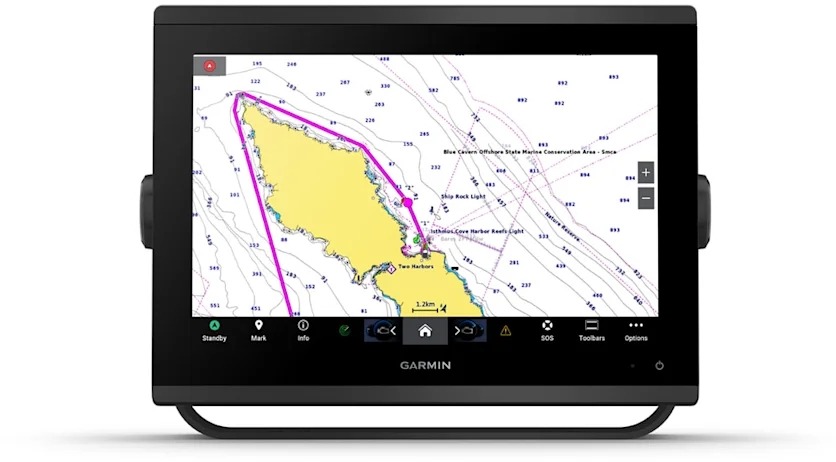

• Tip afisaj: WXGA touchscreen;
• Dimensiune afisaj: 26.2x16.3cm, diagonala 30.7cm (12");
• Rezolutie afisaj: 1280x800 pixeli;
• Montaj: bail, incastrat sau plat.

Harti si memorie:

• Slot carduri: 2 microSD;
• Puncte de trecere: 5000;
• Puncte traseu: 50000;
• Trasee salvate: 50;
• Rute: 100.

Senzori si compatibilitate:

• GNSS: GPS, GLONASS, Galileo;
• Receptor: 10Hz cu sensibilitate ridicata;
• Compatibilitate: NMEA2000, NMEA0183, WAAS;
• Harti suportate: Garmin Navionics+, Vision+, Quickdraw Contours;
• Tabelele mareelor: integrate.

Functii chartplotter:

• Mod Smart: compatibil;
• AIS si DSC: suportate;
• Fusion-Link: compatibil;
• Suport GSD si GCV Black Box Sonar;
• ActiveCaptain: compatibil;
• GRID si telecomanda wireless: compatibile;
• OneHelm: compatibil;
• Alerte audio: disponibile.

Retea electrica:

• Tensiune alimentare: 10–32V dc;
• Curent tipic la 12V: 1.68A;
• Curent maxim la 12V: 3.56A;
• Consum maxim la 10V: 43.0W.

Functii si specificatii sonar:

• Sonar afisat: da;
• Putere iesire: 1kW;
• Sonar CHIRP: integrat, 70/83/200kHz, L/M/H;
• ClearVu: integrat, 260/455/800/1000/1200kHz;
• SideVu: integrat, 260/455/800/1000/1200kHz;
• Panoptix si LiveScope: compatibile.

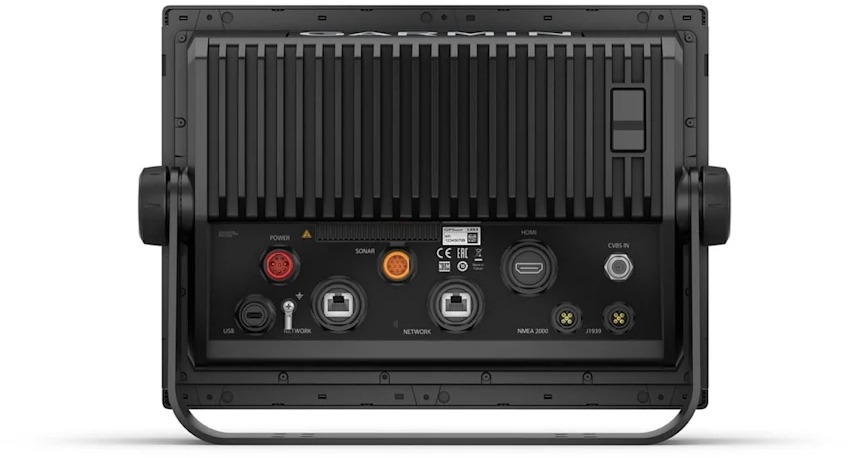

Conectivitate:

• Port NMEA2000: 1;
• Port NMEA0183 Rx: 1(diferential);
• Port NMEA0183 Tx: 1;
• Video input: 1 BNC;
• Port J1939: 1;
• Garmin Marine Network: 2;
• Port traductor 12 pini: 1;
• USB, Bluetooth, ANT, Wi-Fi: disponibile.

Continut pachet:

• Chartplotter GPSMAP 1223xsv;
• Card microSD preinstalat;
• Cablu de alimentare;
• Conector T NMEA2000;
• Cablu de derivatie NMEA2000(2m);
• Cablu adaptor traductor 8 pini la adaptor sonar 12 pini;
• Kit montaj tip bail cu butoane;
• Kit montaj incastrat cu garnitura;
• Husa de protectie;
• Cadre de protectie;
• Radar cu cupola GMR 18 HD3;
• Kit elemente de fixare;
• Cablu de alimentare(15m);
• Cablu de retea(15m);
• Instructiuni de instalare;
• Sablon de montare;
• Documentatie.
